Technical Parameters

Technical Data for D1 Series 13.2kVkV Single-Phase Pole-Mounted Distribution Transformers (Winding Material-AL）
Primary voltage （V）	13200
Model	TR D1-10-13200-120/240	TR D1-15-13200-120/240	TR D1-25-13200-120/240	TR D1-37.5-13200-120/240	TR D1-50-13200-120/240	TR D1-75-13200-120/240	TR D1-100-13200-120/240	TR D1-167-13200-120/240
KVA Rating	10	15	25	37.5	50	75	100	167
No-Load Loss （W)	37	46	62	78	93	136	165	240
Full Load Loss at 85°C (W)	140	192	310	450	580	750	940	1428
Total loss at 100% load (W)	177	238	372	528	673	886	1105	1668
50% load (efficiency%) of distribution transformer at 55 ° C	98.7	98.82	98.95	99.05	99.11	99.19	99.25	99.33
Impedance (85℃)	1.5~3	1.5~3	1.5~3	1.5~3	1.5~3	1.5~3	1.5~3	1.5~3
Oil Weight(L)	54	66	71	87	105	125	134	166
Total Weight(KG)	143	169	207	250	301	404	453	596
Dimension(mm) L	660	700	700	740	780	1020	1020	1130
B	600	630	630	700	740	770	850	920
ΦD	410	445	445	485	525	560	560	626
H	960	980	1050	1070	1090	1150	1180	1240
Winding Material	AL-AL	AL-AL	AL-AL	AL-AL	AL-AL	AL-AL	AL-AL	AL-AL
H.V. TAPS	13860-13530-13200-12870-12540V
L.V.	240/120 V or 480/240V
Insulation Class	HV: 15KV LV: l.2KV
Tapping Range	±2×2. 5%
Lightning Impulse Voltage(H. V.)	95kV
Lightning Impulse Voltage(L.V.)	30kV
Power Frequency Voltage	38kV
POLARIDAD:	SUSTRACTIVA / ADDITIVE
Noise Level (dB)	50
Max. Winding Temp.	65℃
Max Temp.Rise of Top Oil	60℃
Hottest spot	80℃
Oil	Mineral Oil (NON-PCB) / FR3 / Vegetable Oil
Cooling Type	ONAN / KNAN
No. of H.V. Bushing	1 or 2 Bushings: Porcelain Insulator
No of L.V. Bushing	2 or 3 or 4 Porcelain insulator, lifting ring bolt
Kind of Insulation	Outdoor Type
Frequency	60Hz
No. of Phase	1
Working Temperature	-10°C~ +40°C
Altitude	1000M
Circuit Breaker	YES / NO
An overload signal light	YES / NO
HV Lightning Arrester	YES / NO
Tank Color	ANSI Z55.1No.70 gray
Tank Material	Steel / Stainless Steel
Nameplate	Aluminum / Stainless Steel Nameplate 0.5mm Thickness
Core Material	Silicon steel core directional

Technical Data for D1 Series 13.2kVkV Single-Phase Pole-Mounted Distribution Transformers (Winding Material-CU）
Primary voltage （V）	13200
Model	TR D1-10-13200-120/240	TR D1-15-13200-120/240	TR D1-25-13200-120/240	TR D1-37.5-13200-120/240	TR D1-50-13200-120/240	TR D1-75-13200-120/240	TR D1-100-13200-120/240	TR D1-167-13200-120/240
KVA Rating	10	15	25	37.5	50	75	100	167
No-Load Loss （W)	37	46	62	78	93	136	165	240
Full Load Loss at 85°C (W)	140	192	310	450	580	750	940	1428
Total loss at 100% load (W)	177	238	372	528	673	886	1105	1668
50% load (efficiency%) of distribution transformer at 55 ° C	98.7	98.82	98.95	99.05	99.11	99.19	99.25	99.33
Impedance (85℃)	1.5~3	1.5~3	1.5~3	1.5~3	1.5~3	1.5~3	1.5~3	1.5~3
Oil Weight(L)	54	66	71	87	105	125	134	166
Total Weight(KG)	143	169	207	250	301	404	453	596
Dimension(mm) L	660	700	700	740	780	1020	1020	1130
B	600	630	630	700	740	770	850	920
ΦD	410	445	445	485	525	560	560	626
H	960	980	1050	1070	1090	1150	1180	1240
Winding Material	AL-AL	AL-AL	AL-AL	AL-AL	AL-AL	AL-AL	AL-AL	AL-AL
H.V. TAPS	13860-13530-13200-12870-12540V
L.V.	240/120 V or 480/240V
Insulation Class	HV: 15KV LV: l.2KV
Tapping Range	±2×2. 5%
Lightning Impulse Voltage(H. V.)	95kV
Lightning Impulse Voltage(L.V.)	30kV
Power Frequency Voltage	38kV
POLARIDAD:	SUSTRACTIVA / ADDITIVE
Noise Level (dB)	50
Max. Winding Temp.	65℃
Max Temp.Rise of Top Oil	60℃
Hottest spot	80℃
Oil	Mineral Oil (NON-PCB) / FR3 / Vegetable Oil
Cooling Type	ONAN / KNAN
No. of H.V. Bushing	1 or 2 Bushings: Porcelain Insulator
No of L.V. Bushing	2 or 3 or 4 Porcelain insulator, lifting ring bolt
Kind of Insulation	Outdoor Type
Frequency	60Hz
No. of Phase	1
Working Temperature	-10°C~ +40°C
Altitude	1000M
Circuit Breaker	YES / NO
An overload signal light	YES / NO
HV Lightning Arrester	YES / NO
Tank Color	ANSI Z55.1No.70 gray
Tank Material	Steel / Stainless Steel
Nameplate	Aluminum / Stainless Steel Nameplate 0.5mm Thickness
Core Material	Silicon steel core directional

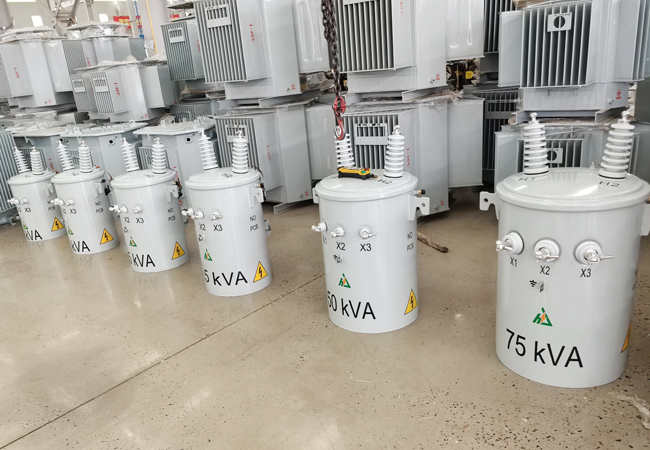

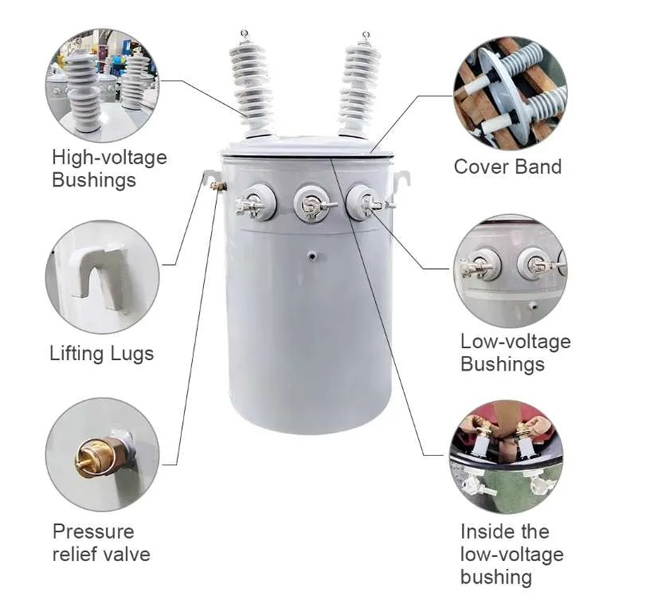

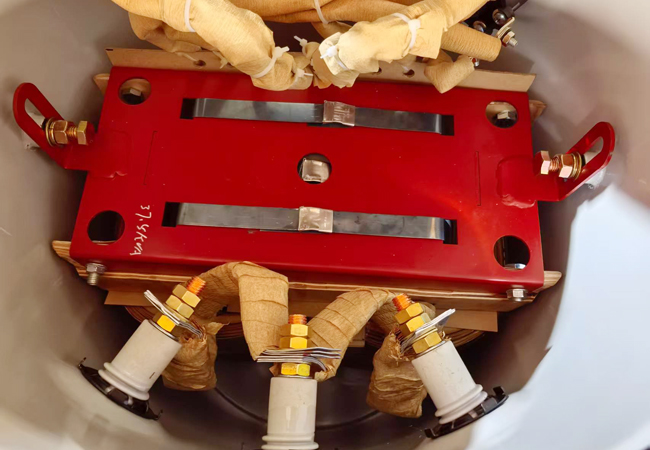

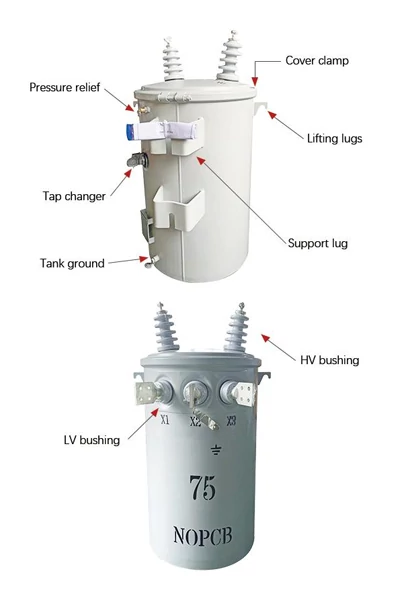

Product Feature

Number	DESCRIPTION
1	Tank
2	LV Bushing
3	Lifting
4	HV Bushing
5	Pressure Relief Valve
6	Off-Load Tap Changer
7	Upper Hanger
8	Lower Hanger
9	Grounding Nut
10	Nameplate

Product Structure
