| Name | Unit | Data | |
| Rated Voltage | Original Side | KV | 33~38.535 |
| Secondary Side | KV | 0.698 | |
| Maximum Working Voltage | KV | 40.5 | |
| Rated Frequency | HZ | 50 | |
| Rated Capacity | KVA | 1600+800~4000 | |
| 1 Minute Power Frequency Withstand Voltage | KV | 95(Transformer Not Included) 85(Transformer) | |
| BIL Impact Withstand Voltage | KV | 185 | |
| Cooling Method | Oil Immersed Self-Cooling | ||
| No Load Voltage Regulation | KV | 35 ± 2×2.5% | |
| Environment Temperature | ℃ | -45~+40 | |
| Allow Top Oil Layer Temp Rise | ≤55 | ||
| Transformer Low Voltage Winding Temp Rise | K | ≤65 | |
| Transformer High Voltage Winding Temp Rise | K | ≤65 | |
| Noise Level | DB | ≤55 | |
| Protection Level | IP33D | ||

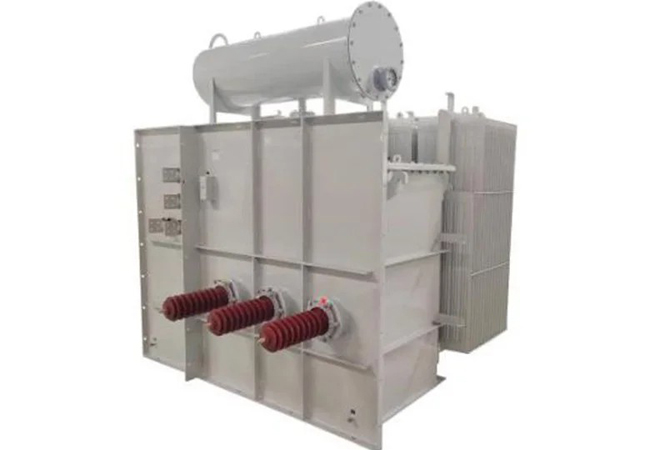

ZGS series new energy combined transformers are precisely to meet the growing power supply requirements of photovoltaic power generation. On the basis of producing 35KV combined transformers, our company integrates advanced domestic and foreign technologies and develops a series of products by itself based on domestic needs. The product installs the transformer, load switch, and high-voltage fuse in the transformer box. It uses the insulating liquid of the transformer as the insulation and heat dissipation medium of the entire product. It adopts a fully sealed structure and has the advantages of small size, light weight, and easy installation.
Details :
The overall layout of the box transformer is compact, reasonable, and small in size; the main components are conveniently connected, and the amount of copper bars is greatly reduced; the incoming and outgoing cable wiring space and inspection space are large, making assembly and inspection easy. Box structure: All metal structural parts are sandblasted, hot-dip galvanized, and spray-painted to ensure that the equipment has strong corrosion resistance when used in humid and heavy salt spray environments. All door panels and wall panels have no interlayers and are filled in the middle. There are polyurethane and silicate composite insulation materials, which have excellent thermal insulation properties and ensure that the equipment can be put into operation safely and quickly in severe cold environments.
The transformer mainly adopts three-phase dual-winding oil-immersed no-load voltage-regulating low-loss power transformer. Other types of power transformers can also be configured according to requirements. The power transformer has adopted a series of reforms in materials, processes, and structure, making the electrical performance of the product reach the advanced level of similar international products. Its no-load loss and load loss are both lower than the national standard requirements, and it has the characteristics of high efficiency and low loss. It can save a lot of power consumption and operating costs, and has significant social benefits. The iron core is made of high-quality cold-rolled grain-oriented silicon steel sheets with full oblique joint stacking, and is filled with vacuum oil.
The low-voltage side can use intelligent circuit breakers or other series of low-voltage circuit breakers to distribute electric energy and protect lines and equipment from overload, undervoltage, short circuit, single-phase grounding and other faults. At the same time, a small maintenance transformer is installed on the low-voltage side to provide power at the user’s maintenance site. The electrical beams of the low-voltage cabinet frame are all treated with hot-dip galvanizing for anti-corrosion.
We adhere to a market-oriented and customer-centric approach. In the highly competitive market, we have consistently earned the trust and recognition of our customers through exceptional product quality and efficient, comprehensive services.
Our solemn commitment to customers:Long-lasting Durability: We ensure that the service life of the supplied transformers is no less than 30 years.
Full-process Quality Control: From the receipt of bid documents, we initiate a comprehensive evaluation to ensure complete alignment with customer requirements. All raw materials and components are sourced from certified suppliers, and strict quality control standards are implemented. The production process strictly follows contracts and technical agreements, ensuring every step meets high-quality standards.
Hassle-free After-sales Service: All performance indicators of our transformers exceed or comply with national standards. Within three years after product installation and commissioning, if oil leakage occurs in oil-immersed transformers due to manufacturing reasons, we will provide free repairs. For any critical component issues arising during production or installation, we will prioritize project progress, address them promptly, and subsequently conduct responsibility analysis and corrective actions. We also sincerely welcome customers to visit our production site for supervision and guidance.
We provide comprehensive after-sales support, including free installation and commissioning guidance. After the product is put into operation, if any assistance is required, our service team will respond quickly:
24/7 Technical Support: We offer round-the-clock online support, including video calls, troubleshooting guides, and technical documentation, ensuring timely assistance for global customers.
Remote Diagnostic Services: Remote detection and diagnostics can be performed based on data provided by customers or through real-time video.
Regular Follow-up Mechanism: We have established a robust regular follow-up system to monitor product operation status online or on-site, ensuring customers can use our products with continuous peace of mind.
For complex issues, we will promptly dispatch experienced engineers to the site within the agreed international response time, providing services such as installation guidance, commissioning, maintenance, and repairs.
Dedicated Service RepresentativeEach customer is assigned a dedicated service representative who coordinates after-sales support, issue resolution, and regular follow-ups, ensuring seamless service throughout the entire process.
Continuous CareAfter installation, we conduct regular on-site or online follow-ups to continuously monitor product performance and promptly respond to customer feedback. Through proactive services, we ensure that equipment always operates at its optimal state, enhancing customer satisfaction.
By integrating rapid response, advanced technical support, and localized service experience, we have built a mature and efficient international service system. We are committed to providing professional and reliable after-sales support for global customers. We look forward to establishing long-term partnerships with you through continuous value delivery and high-quality services.
