20KV Class SC(B)10 series non-excitation voltage regulating dry power transformer performance parameter table
| Rated
Capacity (kVA) |
Junction
group label |
Voltage combination (kV) | No-load
current (%) |
（W)Load loss at different insulation heat ratings | Load loss (W) | Short circuit
impedance (%) |
||||
| (H.V.) | High voltage tap
range(%) |
(L.V.) | B
(100℃) |
F
(120℃) |
H
(145℃) |
|||||
| 50 |
Yyn0 Dyn11 |
20 22 24 |
±5 2×2.5 |
0.4 |
2.2 | 1160 | 1230 | 1320 | 340 |
6.0 |
| 100 | 2.0 | 1880 | 1990 | 2130 | 540 | |||||
| 160 | 1.6 | 2340 | 2470 | 2660 | 675 | |||||
| 200 | 1.6 | 2800 | 2940 | 3140 | 740 | |||||
| 250 | 1.4 | 3260 | 3420 | 3710 | 840 | |||||
| 315 | 1.4 | 3890 | 4080 | 4370 | 970 | |||||
| 400 | 1.2 | 4650 | 4840 | 5180 | 1150 | |||||
| 500 | 1.2 | 5510 | 5790 | 6170 | 1350 | |||||
| 630 | 1.0 | 6530 | 6840 | 7360 | 1530 | |||||
| 800 | 1.0 | 7810 | 8260 | 8830 | 1750 | |||||
| 1000 | 0.8 | 9230 | 9780 | 10450 | 2070 | |||||
| 1250 | 0.8 | 10920 | 11540 | 12350 | 2380 | |||||
| 1600 | 0.8 | 13090 | 13870 | 14860 | 2790 | |||||
| 2000 | 0.6 | 15480 | 16380 | 17570 | 3240 | |||||
| 2500 | 0.6 | 18380 | 19380 | 20710 | 3870 | |||||
| 2000 | 0.6 | 16910 | 17860 | 19000 | 3240 | 8.0 | ||||
| 2500 | 0.6 | 20230 | 21280 | 22700 | 3870 | |||||
Note:The load loss listed in the table is the value under the reference temperature in parentheses(see GB1094.11).
35KV Class SC(B)10 series non-excitation voltage regulating dry power transformer performance parameter table
|
Junction group label |
Voltage combination(kV) | No-load
current (%) |
(W) Load loss at different insulation heat ratings |
Load loss (W) |
Short circuti
impedance (%) |
||||
| (H.V.) | High voltage tap
range(%) |
(L.V.) | B(100℃) | F(120℃) | H(145℃) | ||||
|
Yyn0 Dyn11 |
35 38.5 |
±5 2×2.5 |
0.4 |
2.6 | 1350 | 1420 | 1520 | 450 |
6.0 |
| 2.2 | 1970 | 2080 | 2230 | 630 | |||||
| 1.6 | 2650 | 2810 | 3010 | 790 | |||||
| 1.6 | 3130 | 3320 | 3560 | 880 | |||||
| 1.4 | 3560 | 3800 | 4060 | 990 | |||||
| 1.4 | 4250 | 4510 | 4820 | 1170 | |||||
| 1.2 | 5090 | 5410 | 5770 | 1370 | |||||
| 1.2 | 6240 | 6650 | 7070 | 1620 | |||||
| 1.0 | 7260 | 7690 | 8260 | 1860 | |||||
| 1.0 | 8550 | 9120 | 9730 | 2160 | |||||
| 0.8 | 9880 | 10450 | 11210 | 2430 | |||||
| 0.7 | 12060 | 12730 | 13580 | 2830 | |||||
| 0.7 | 14630 | 15480 | 16530 | 3240 | |||||
| 0.7 | 17190 | 18240 | 19470 | 3820 | |||||
| 0.7 | 20610 | 21850 | 23370 | 4450 | |||||
Note:The load loss listed in the table is the value under the reference temperature in parentheses(see GB1094.11)
35KV Class SC(B)10 series non-excitation voltage regulating dry power transformer performance parameter table
| Rated
Capacity (kVA) |
Junction group label | Voltage combination(kV) | No-load
current (%) |
(W) Load loss at different insulation heat ratings | Load loss
(W) |
Short circuit
impedance (%) |
||||
| (H.V.) | High voltage tap range(%) | (L.V.) | B
(100℃) |
F
(120℃) |
H
(145℃) |
|||||
| 800 |
Dyn11 Yd11 YynO |
35 38.5 |
±5 2×2.5 |
3.15 6 6.3 10 10.5 11 |
0.9 | 8930 | 9400 | 10070 | 4860 |
6.0 |
| 1000 | 0.9 | 10260 | 10920 | 11680 | 2250 | |||||
| 1250 | 0.8 | 12160 | 12920 | 13770 | 2673 | |||||
| 1600 | 0.8 | 14630 | 15480 | 16530 | 3130 | |||||
| 2000 | 0.7 | 17190 | 18240 | 19570 | 3690 | 7.0 | ||||
| 2500 | 0.7 | 20610 | 21850 | 23370 | 4230 | |||||
| 3150 | 0.6 | 23080 | 24510 | 26120 | 6030 |
8.0 |
||||
| 4000 | 0.6 | 27930 | 29450 | 31350 | 7020 | |||||
| 5000 | 0.5 | 32960 | 34960 | 37330 | 8370 | |||||
| 6300 | 0.5 | 38470 | 40850 | 43600 | 9900 | |||||
| 8000 |
Dyn11 Yd11 YNd11 |
0.4 | 43410 | 46070 | 49300 | 11340 |
9.0 |
|||
| 10000 | 0.4 | 52720 | 55570 | 59470 | 12960 | |||||
| 12500 | 6
6.3 10 10.5 11 |
0.3 | 60800 | 64600 | 69060 | 15750 | ||||
| 16000 | 0.3 | 71720 | 76000 | 80560 | 19350 | |||||
| 20000 | 0.3 | 80750 | 85500 | 91480 | 22950 | 10.0 | ||||
Note:The load loss listed in the table is the value under the reference temperature in parentheses(see GB1094.11).
Application:
This series of products is used to directly reduce the power supply of 20kV and 35KV power grids to 400V power distribution power supply or 10KV power transmission power supply.Because of its significant advantages,it is used in more and more projects.ts main advantages are:Reducing the construction of land Occupation and multi-level substation projects has significant social benefits.Save engineering investment and improve economic efficiency.Reduce the 10kV power transmission and transformation ink,so that the operation and maintenance costs are significantly reduced.The use of high voltage and small current instead of low voltage and large current transmission reduces line losses and reduces the operating costs.The 35KV and 20kV power supplies directly enter the power consumption center,effectively improving the reliability of the power supply.
Features:

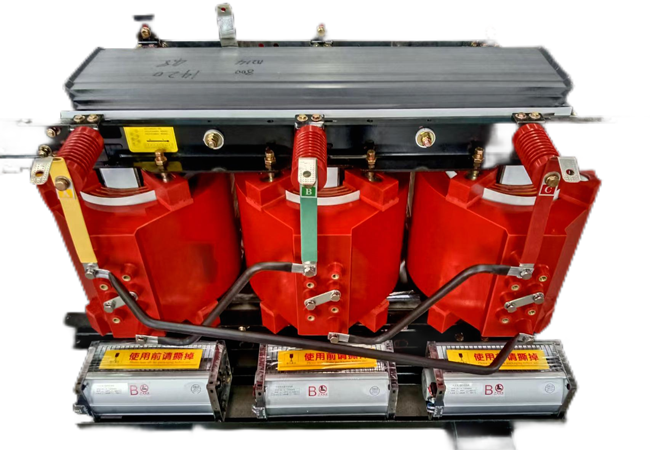

The SC(B)10 series 20KV class and 35KV class non-exciting voltage regulating dry type transformers produced by our company are low-loss products,which meet the requirements of national standards GB6450,GB/T10228 and IEC726,and have the following characteristics:

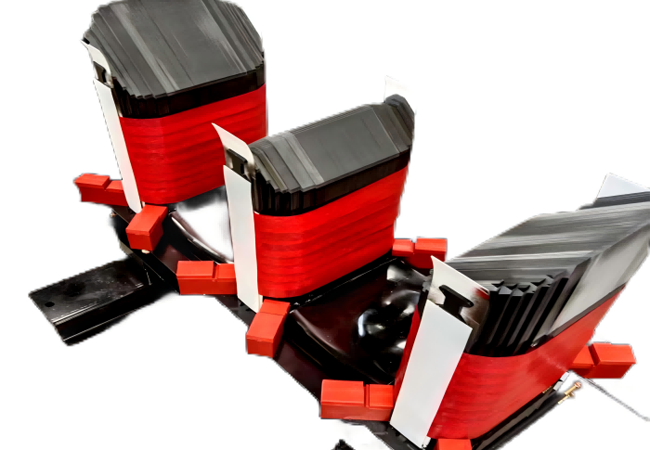

Select high-quality silicon steel sheet,and greatly reduce the magnetic fux density,reduce the amount of magneto striction of the silicon steel sheet during operation,and effectively reduce noise.

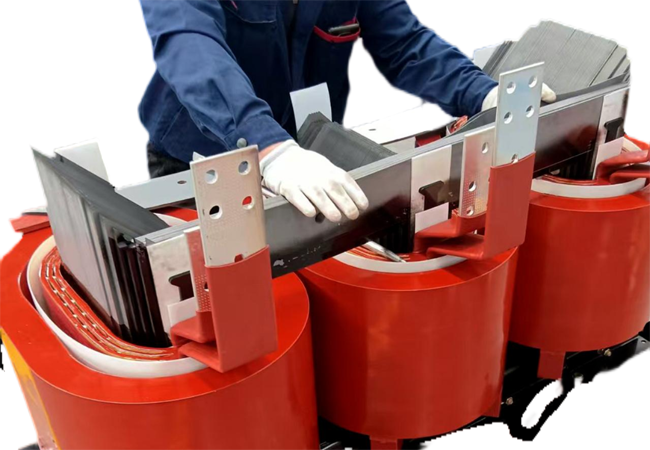

Optimize the structure of the high-voltage coil,improve the distribution of voltage and capacitance between the layers,greatly improve the products ability to withstand the atmospheric over voltage and operating over voltage,and also improve the electrified distribution,so that the product volume is further reduced.
The temperature control system and air-cooling device can be configured to automatically star the fan cooling device when the load is too large,which can effectively improve the overload capacity of the equipment.
We adhere to a market-oriented and customer-centric approach. In the highly competitive market, we have consistently earned the trust and recognition of our customers through exceptional product quality and efficient, comprehensive services.
Our solemn commitment to customers:Long-lasting Durability: We ensure that the service life of the supplied transformers is no less than 30 years.
Full-process Quality Control: From the receipt of bid documents, we initiate a comprehensive evaluation to ensure complete alignment with customer requirements. All raw materials and components are sourced from certified suppliers, and strict quality control standards are implemented. The production process strictly follows contracts and technical agreements, ensuring every step meets high-quality standards.
Hassle-free After-sales Service: All performance indicators of our transformers exceed or comply with national standards. Within three years after product installation and commissioning, if oil leakage occurs in oil-immersed transformers due to manufacturing reasons, we will provide free repairs. For any critical component issues arising during production or installation, we will prioritize project progress, address them promptly, and subsequently conduct responsibility analysis and corrective actions. We also sincerely welcome customers to visit our production site for supervision and guidance.
We provide comprehensive after-sales support, including free installation and commissioning guidance. After the product is put into operation, if any assistance is required, our service team will respond quickly:
24/7 Technical Support: We offer round-the-clock online support, including video calls, troubleshooting guides, and technical documentation, ensuring timely assistance for global customers.
Remote Diagnostic Services: Remote detection and diagnostics can be performed based on data provided by customers or through real-time video.
Regular Follow-up Mechanism: We have established a robust regular follow-up system to monitor product operation status online or on-site, ensuring customers can use our products with continuous peace of mind.
For complex issues, we will promptly dispatch experienced engineers to the site within the agreed international response time, providing services such as installation guidance, commissioning, maintenance, and repairs.
Dedicated Service RepresentativeEach customer is assigned a dedicated service representative who coordinates after-sales support, issue resolution, and regular follow-ups, ensuring seamless service throughout the entire process.
Continuous CareAfter installation, we conduct regular on-site or online follow-ups to continuously monitor product performance and promptly respond to customer feedback. Through proactive services, we ensure that equipment always operates at its optimal state, enhancing customer satisfaction.
By integrating rapid response, advanced technical support, and localized service experience, we have built a mature and efficient international service system. We are committed to providing professional and reliable after-sales support for global customers. We look forward to establishing long-term partnerships with you through continuous value delivery and high-quality services.
