| Project | Unit | Parameter | |||
| High voltage side rated voltage | kV | 10 20 | |||
| High voltage side highest voltage | 12 24 | ||||
| Low voltage side rated voltage | V | 400 | |||
| Transformer capacity | KVA | 30-630 | |||
| Rated frequency | HZ | 50 60 | |||
| Rated peak withstand current | kA | 50 | |||
| 1S short-time withstand current | 25 | ||||
|
Rated insulation level |
High
pressure side |
Lightning impulse withstand | 10KV |
kV |
75/85 |
| 20KV | 125/45 | ||||
| 1min
Power frequency tolerance |
10KV | 42/48 | |||
| 20KV | 65/79 | ||||
| Low
pressure side |
Rated voltage |
V |
60≤UI≤300 300≤UI≤660 660≤UI≤800 | ||
| Lightning impulse withstand voltage Lightning | 2500 6000 8000 | ||||
| 1min
Power frequency withstand voltage |
2000 2500 3000 | ||||
|
transformer |
High voltage side highest voltage |
kV |
6 10 20 | ||
| Low voltage side rated voltage | 60 75 125 | ||||
| 1min
Power frequency withstand voltage |
25/20 35/28 55/50 | ||||
| Enclosure protection grade | IP | 4X | |||
Application:

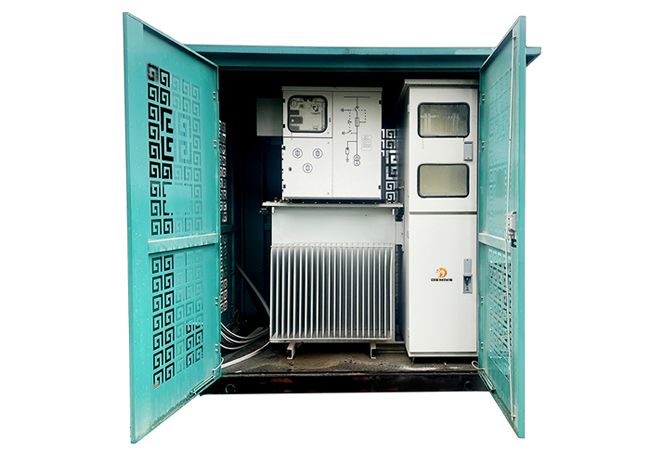

With the development of modern urban power grid and the strategic goal of State Grid Corporation of China to build a world-class energy Internet enterprise. With the continuous increase of urban electricity consumption and the shortage of land resources, the demand for miniaturization of distribution stations (rooms) and distribution equipment is becoming more and more urgent. In the revision of the typical design of distribution network of State Grid Corporation of China, the miniaturization switch station type has been added, and after optimization, the area of each switch station can be reduced by more than 60% on average. The ZMXB2 series miniaturized intelligent prefabricated substation developed by our company has the advantages of modular design, simple structure, minimum floor space, safety, reliability, no overhaul, less maintenance, high degree of automation and standardization, diversified appearance and coordination with the surrounding environment. It is suitable for crowded sections of modern cities and some relatively narrow spaces, and also meets the standard requirements of distribution automation of power grid companies.
Features:
This product is an alternative product of the United States, with small floor space, easy to make full use of the original environment and foundation for upgrading, short construction period and low investment. European-style box-type variable structure design, diversified appearance, can be designed to integrate with the surrounding environment. There is a communication room inside, which can realize remote control and data upload, and improve the efficiency of operation and maintenance. Compared with American box transformer, it has many functions, strong ring network ability and more stable and safer operation.
We adhere to a market-oriented and customer-centric approach. In the highly competitive market, we have consistently earned the trust and recognition of our customers through exceptional product quality and efficient, comprehensive services.
Our solemn commitment to customers:Long-lasting Durability: We ensure that the service life of the supplied transformers is no less than 30 years.
Full-process Quality Control: From the receipt of bid documents, we initiate a comprehensive evaluation to ensure complete alignment with customer requirements. All raw materials and components are sourced from certified suppliers, and strict quality control standards are implemented. The production process strictly follows contracts and technical agreements, ensuring every step meets high-quality standards.
Hassle-free After-sales Service: All performance indicators of our transformers exceed or comply with national standards. Within three years after product installation and commissioning, if oil leakage occurs in oil-immersed transformers due to manufacturing reasons, we will provide free repairs. For any critical component issues arising during production or installation, we will prioritize project progress, address them promptly, and subsequently conduct responsibility analysis and corrective actions. We also sincerely welcome customers to visit our production site for supervision and guidance.
We provide comprehensive after-sales support, including free installation and commissioning guidance. After the product is put into operation, if any assistance is required, our service team will respond quickly:
24/7 Technical Support: We offer round-the-clock online support, including video calls, troubleshooting guides, and technical documentation, ensuring timely assistance for global customers.
Remote Diagnostic Services: Remote detection and diagnostics can be performed based on data provided by customers or through real-time video.
Regular Follow-up Mechanism: We have established a robust regular follow-up system to monitor product operation status online or on-site, ensuring customers can use our products with continuous peace of mind.
For complex issues, we will promptly dispatch experienced engineers to the site within the agreed international response time, providing services such as installation guidance, commissioning, maintenance, and repairs.
Dedicated Service RepresentativeEach customer is assigned a dedicated service representative who coordinates after-sales support, issue resolution, and regular follow-ups, ensuring seamless service throughout the entire process.
Continuous CareAfter installation, we conduct regular on-site or online follow-ups to continuously monitor product performance and promptly respond to customer feedback. Through proactive services, we ensure that equipment always operates at its optimal state, enhancing customer satisfaction.
By integrating rapid response, advanced technical support, and localized service experience, we have built a mature and efficient international service system. We are committed to providing professional and reliable after-sales support for global customers. We look forward to establishing long-term partnerships with you through continuous value delivery and high-quality services.
